1
Engine displacement
1200
2
Year
2001
3
Trim
SLX - W014699D
4
Parts Catalog
PROPULSION
5

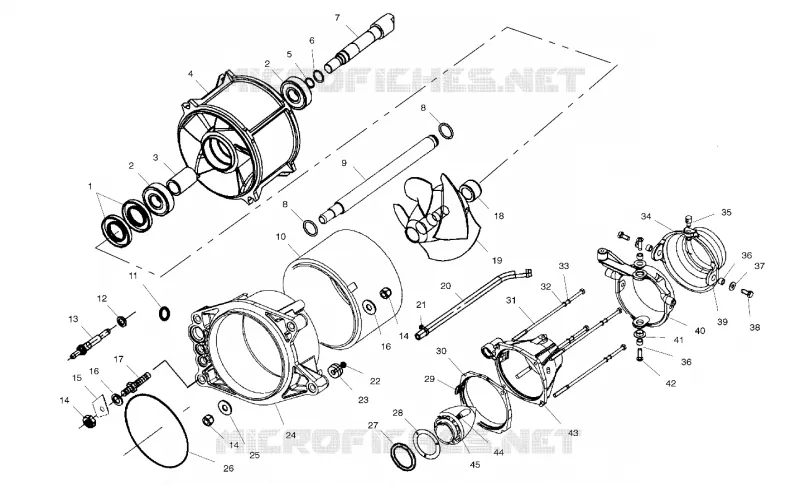

Parts Diagram
Parts Catalog
OIL TANK
by
TRIM PACKAGE
PROPULSION
1
SEAL BRG STATOR
3610043
Not Available
2
BEARING
3514008
Not Available
3
SPACER
5010294
Not Available
4
STATOR SS ASIA TREND
5132088
$468,29 Unit Price incl. VAT
5
O-RING (10)
5410817
$1,04 Unit Price incl. VAT
6
O-RING(10)
5410818
$1,04 Unit Price incl. VAT
7
SHAFT-STUB
5132674
$76,85 Unit Price incl. VAT
8
O RING (10)
5410735
$1,04 Unit Price incl. VAT
9
PIPE WATER ENG.(X-PUMP)
5432269
$45,14 Unit Price incl. VAT
10
EXTENSION PUMP
5131196
$263,01 Unit Price incl. VAT
11
SEAL WATER PIPE
5411107
Not Available
12
SEAL SIPHON TUBE
5411016
Not Available
13
PIPE WATER BILGE Substituted by 5020835
5431990
Not Available
14
NUT HEX S.S.(10)
7542455
$1,56 Unit Price incl. VAT
15
BRKT STEERING CABLE NUT
5244556
Not Available
16
WASHER PUMPSTUD SEAL
7555941
$11,54 Unit Price incl. VAT
17
STUD MOUNT PUMP LONG INT.
5132111
Not Available
18
SPACER IMPELLER
5010295
Not Available
19
IMPELLER .445#CLEAR. OVERLAP
5132707
Not Available
20
HOSE WATER
8450054100
Not Available
21
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
22
SCREW(10)
7522019
$1,56 Unit Price incl. VAT
23
ANODE-ZINC Substituted by 2200745
5630598
Not Available
24
HSG PUMP W/O RING INT STUD
5131573
Not Available
25
WASHER-.406X1.00X.125 FL
7555966
$4,15 Unit Price incl. VAT
26
O-RING PUMP HSG/HULL
5410652
Not Available
27
O-RING(10)
5410819
$1,04 Unit Price incl. VAT
28
SEAL TAILCONE
5811984
Not Available
29
SCREEN ENG.INLET
5431523
Not Available
30
WEDGE PUMP 0X4 MOLDED
5432841
Not Available
31
BOLT
7515389
Not Available
32
WASHER FLAT S.S. (10)
7555835
$0,93 Unit Price incl. VAT
33
WASHER LOCK S.S.(10)
7552610
Not Available
34
WASHER(10)
7555866
$9,02 Unit Price incl. VAT
35
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
36
COLLAR
5130938
Not Available
37
WASHER
7555874
$4,19 Unit Price incl. VAT
38
BOLT S.S.(10)
7515361
$2,82 Unit Price incl. VAT
39
NOZZLE TRIM
5431765
Not Available
40
NOZZLE STRG.REVERSE
5130960
Not Available
41
BRG STRG.NOZZLE (10)
5431518
Not Available
42
BOLT S.S.(10)
7515366
Not Available
43
NOZZLE ASM 0X4 WEDGE
1350038
$263,01 Unit Price incl. VAT
44
SCREW(10)
7512064
Not Available
45
CONE PUMP
5431519
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
