1
Engine displacement
900
2
Year
2018
3
Trim
ACE 900 EPS XC
4
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
5

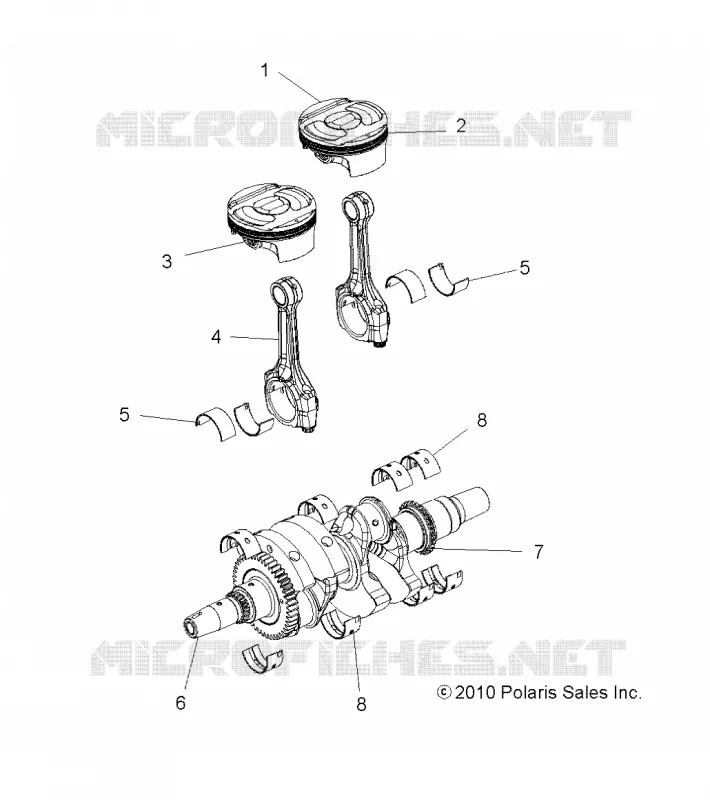

Parts Diagram
Parts Catalog
CRANKCASE
by
CYLINDER AND HEAD
ENGINE, CRANKSHAFT AND PISTON
1
2
3
3
4
4
5
5
5
5
5
5
5
5
5
5
6
7
8
8
8
8
8
8
8
8
8
8
8
8
1
KIT-PISTON 3022567
2205244
$256,19 Unit Price incl. VAT
2
KIT-PISTON RINGS
2205245
2204949
$157,49 Unit Price incl. VAT
3
RING-RTG ROUND 20.0X1.6
3022413
$7,34 Unit Price incl. VAT
3
PIN PISTON
3022358
$40,94 Unit Price incl. VAT
4
SCR-ROD BOLT MJ9X1-4H6H
7520349
$20,99 Unit Price incl. VAT
4
ASM. CONNECTING ROD FORGED [INCL. 6 7]
3022893
$404,24 Unit Price incl. VAT
5
BEARING-CON ROD G-90 41MM
3514663
Not Available
5
BEARING CONNECTING ROD GREEN
3514663003
$15,74 Unit Price incl. VAT
5
BEARING CONNECTING ROD WHITE
3514663001
$15,74 Unit Price incl. VAT
5
BEARING CONNECTING ROD YELLOW
3514663004
$15,74 Unit Price incl. VAT
5
BEARING CONNECTING ROD BLUE
3514663002
$15,74 Unit Price incl. VAT
6
ASM. CRANKSHAFT [FROM 7/1/2020][TO 10/1/2020]
3022793
3023701
$1 433,24 Unit Price incl. VAT
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
BEARING-MAIN G-90 41MM GRN
3514662003
$16,79 Unit Price incl. VAT
8
BEARING-MAIN G-90 41MM BLU
3514662002
$16,79 Unit Price incl. VAT
8
BEARING-MAIN G-90 41MM
3514662001
$16,79 Unit Price incl. VAT
8
BEARING-MAIN G-90 41MM RED
3514662005
$16,79 Unit Price incl. VAT
8
BEARING-MAIN G-90 41MM YLW
3514662004
$16,79 Unit Price incl. VAT
8
BEARING-MAIN G-90 41MM
3514662
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
