TURN SIGNALS, HORN and LICENSE PLATE LIGHT FOR SPORTSMAN FOREST TRACTOR 500 - A12MN50ET/EX FROM 2012

ENGINE, AIR INTAKE SYSTEM

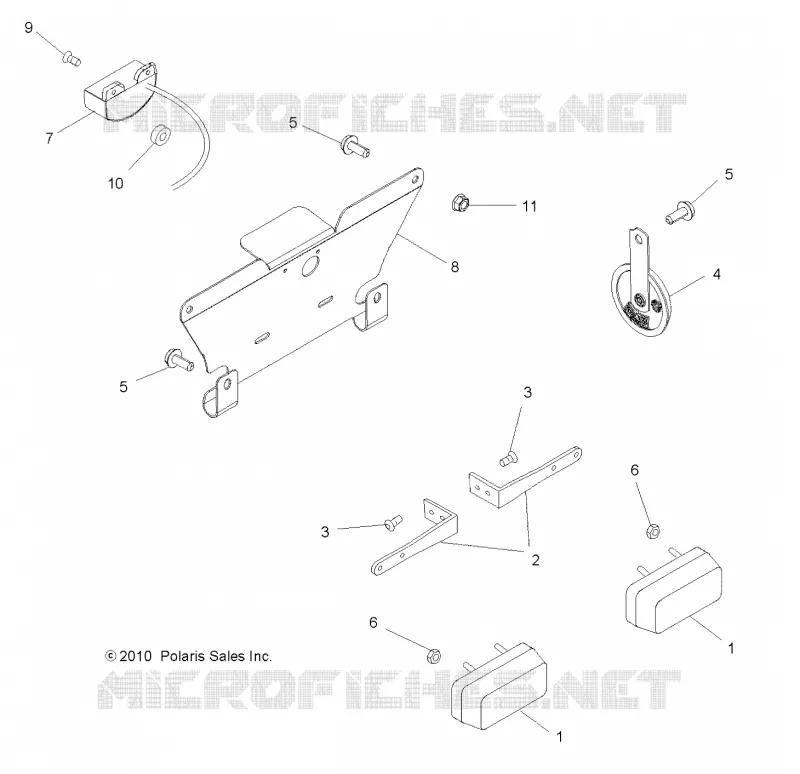

TURN SIGNALS, HORN and LICENSE PLATE LIGHT

1

SIGNAL TURN FRONT

2411271

Not Available

2

Bracket Signal Light Black

5254673067

Not Available

3

SCREW-#10X3/4-HI/LO-PN-T25 TRX-M

7512026

$2,09 Unit Price incl. VAT

4

HORN DISC [TO 11/6/2023]

4011579

$87,14 Unit Price incl. VAT

5

SCR-5/16-18X3/4 TFM HW T/R-Y

7515399

$2,09 Unit Price incl. VAT

6

NUT-M5X.8 HX NYL-Y

7546601

$2,09 Unit Price incl. VAT

7

LIGHT-LICENSE PLATE TRACTR BLK

2411278

Not Available

8

Bracket Registration Plate Black

5252917067

$131,24 Unit Price incl. VAT

9

SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]

7512018

$6,29 Unit Price incl. VAT

10

WASHER NYLON

7555932

$4,19 Unit Price incl. VAT

11

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
