1
Engine displacement
650
2
Year
1992
3
Trim
650 RXL SKS - 0920568
4
Parts Catalog

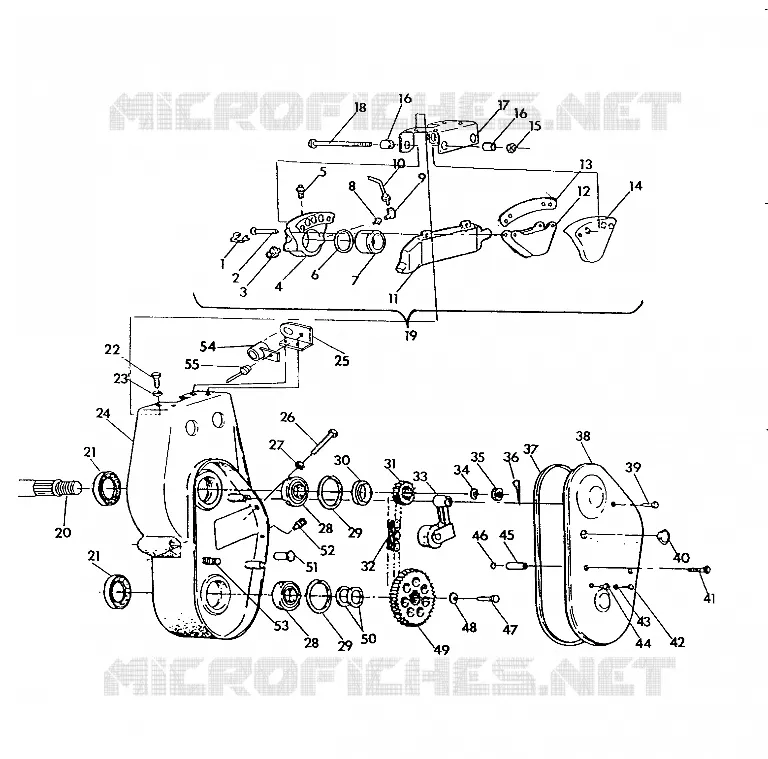

BRAKE CHAINCASE RXL/RXL SKS (492132213221A)
5
Parts Diagram
Parts Catalog
MASTER CYLINDER RXL/RXL SKS (492132213217A)
by
CHAINCASE ASSEMBLY RXL/RXL SKS (492132213223A)
BRAKE CHAINCASE RXL/RXL SKS (492132213221A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
21
22
23
24
25
26
27
28
28
29
29
30
31
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
49
50
51
52
53
54
55
1
CLIP-SPRING
1930562
Not Available
2
PIN PAD RETAINING
1930563
Not Available
3
SWITCH-STOPLIGHT
4110046
Not Available
4
CALIPER ASM BRAKE (Incl. 1-6 10-12)
1930556
Not Available
5
SCREW-BLEEDER
1930564
Not Available
6
SEAL-PISTON
1930567
Not Available
7
PISTON
1930568
Not Available
8
CONNECTOR
5020371
Not Available
9
ELBOW
7052058
Not Available
10
LINE BRAKE
1930692
Not Available
11
COOLER-BRAKE
2511154
$85,88 Unit Price incl. VAT
12
PAD BRAKE
1930569
Not Available
13
SPACER
5210999
Not Available
14
CASTING-CARRIER
1930570
Not Available
15
NUT
1930558
Not Available
16
BUSHING
1930559
Not Available
17
BRACKET
5223986
Not Available
18
BOLT-BRIDGE
1930561
Not Available
19
CALIPER BRAKE UNIT (Incl. 1-17)
1930587
Not Available
20
SHAFT INPUT Substituted by 1332135-067
5130787
Not Available
21
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
22
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
23
WASHER SPLIT LOCK(10)
7552804
$6,29 Unit Price incl. VAT
24
CHAINCASE
5130795
Not Available
25
BRACKET Substituted by 5222686-067
5222686
Not Available
26
SCR-HH-3/8-16X2.75GR5 ZY3
7515511
$7,34 Unit Price incl. VAT
27
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
28
BEARING CHAINCASE **
3514306
Not Available
29
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
30
SPACER SPROCKET
5010270
Not Available
31
SPKT 20T (500 SKS)
3221053
Not Available
31
SPROCKET 21 T
3221035
Not Available
32
CHAIN 64 PITCH
3224023
Not Available
32
CHAIN 66 PITCH
3224024
Not Available
33
TIGHTENER ASM. Substituted by 1332213
1332078
Not Available
34
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
35
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
36
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
37
GASKET-CHAINCASE
5410277
Not Available
38
COVER CHAINCASE
5222579
Not Available
39
BOLT(10)
7512246
Not Available
40
PLUG RUBBER-HOLE .5DIA(10) Substituted by 5411426
5410012
Not Available
41
BOLT S.S.(10)
7512293
Not Available
42
SCREW(10)
7511909
$7,34 Unit Price incl. VAT
43
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
44
NUT-WELL(10)
7541918
Not Available
45
STAND-OFF C/C COVER
5333033
Not Available
46
O RING
5410565
Not Available
47
SCREW(10)
7515350
7517979
$7,34 Unit Price incl. VAT
48
WASHER-SPRING CON 5/16X.090 Z
7571618
$11,54 Unit Price incl. VAT
49
SPROCKET 39 T
3222034
Not Available
49
SPROCKET 35 T
3222036
$85,88 Unit Price incl. VAT
50
BUSHING
7556509
$3,14 Unit Price incl. VAT
51
CAP STUD COVER
5020569
Not Available
52
PLUG MAGNETIC
7051518
7052045
$26,24 Unit Price incl. VAT
53
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
54
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
55
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
