1
Engine displacement
0
2
Year
1999
3
Trim
TRAIL TOURING - 099ET4ES
4
Parts Catalog
FRONT SUSPENSION AND SKI
5
Parts Diagram
Parts Catalog
DECALS
by
IGNITION WIRE HARNESS

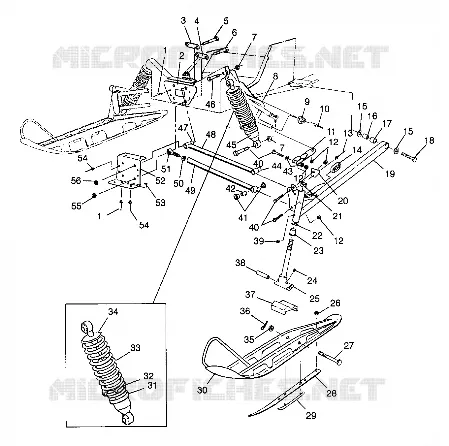

FRONT SUSPENSION AND SKI
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
7
8
8
9
9
10
10
11
11
12
12
12
12
12
12
13
13
14
14
15
15
15
15
16
16
17
17
18
18
19
19
19
19
19
19
19
19
20
20
20
20
20
20
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
40
40
41
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
54
54
55
55
56
56
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
7
8
8
9
9
10
10
11
11
12
12
12
12
12
12
13
13
14
14
15
15
15
15
16
16
17
17
18
18
19
19
19
19
19
19
19
19
20
20
20
20
20
20
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
40
40
41
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
54
54
55
55
56
56
1
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
2
BRACE BLKHD/STRG BLK.
5211589067
Not Available
3
STRAP-SPACER TOP
5211344
$13,64 Unit Price incl. VAT
4
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
5
BOLT(10)
7512582
Not Available
6
BOLT(10)
7512684
Not Available
7
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
8
BAR SWAY 9/16(X-12)BLK
5224749067
Not Available
9
BUSHING SWAY BAR (XLT SKS)
5432412
$27,29 Unit Price incl. VAT
10
RIVET
7621433
$2,09 Unit Price incl. VAT
11
ARM STRG BLK
5241560067
Not Available
12
Nut
7542403
Not Available
13
RIVET(50) Substituted by 7661130
7661643
7661130
$2,09 Unit Price incl. VAT
14
SLIDE SWAYBAR 9/16
5432674
Not Available
15
WASHER
7555721
$2,09 Unit Price incl. VAT
16
BUSHING
5010310
$19,94 Unit Price incl. VAT
17
PIVOT RUBBER
5410872
$15,74 Unit Price incl. VAT
18
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
19
ARM ASM TRLG LH Substituted by 1822506-067 (Incl. 16 17)
1822506
Not Available
19
ARM ASM TRLG RH Substituted by 1822507-067 (Incl. 16 17)
1822507
Not Available
20
STOP LH STRG BLK.
5241569067
$13,64 Unit Price incl. VAT
20
STOP RH STRG BLK.
5241570067
$13,64 Unit Price incl. VAT
21
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
22
BUSHING
7556509
$3,14 Unit Price incl. VAT
23
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
24
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
25
SHAFT SPINDLE TRLG BLK
6230102067
$440,99 Unit Price incl. VAT
26
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
27
BOLT(10)
7515462
$15,74 Unit Price incl. VAT
28
PLATE SKAG
1011829067
$74,54 Unit Price incl. VAT
29
SKAG BLK.
1820318067
$68,24 Unit Price incl. VAT
30
SKI WELD
1820430067
Not Available
31
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
32
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
33
SPRING COMP 80# BLK.
7041683067
Not Available
34
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
35
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
36
PIN COTTER(10) Substituted by 7661205
7661209
7661205
$1,56 Unit Price incl. VAT
37
STOP RUBBER
5411083
$26,24 Unit Price incl. VAT
38
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
39
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
40
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
41
BUSHING PIVOT RADIUS ROD OUTER
5431486
$6,29 Unit Price incl. VAT
42
BUSHING
5010127
$12,59 Unit Price incl. VAT
43
Washer .105
7555832
$4,19 Unit Price incl. VAT
44
BUSHING RADIUS ROD PIVOT
5411099
$20,99 Unit Price incl. VAT
45
SHOCK GAS IFS
7041539
Not Available
46
SCREW
7515415
$2,09 Unit Price incl. VAT
47
BUSHING PIVOT
5411095
$27,29 Unit Price incl. VAT
48
ROD RAD UPPER FIXED
1822510
Not Available
49
ROD RAD LOWER BLK.
1822383067
Not Available
50
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
51
ROD END Substituted by 7061027
7060162
7061052
$99,74 Unit Price incl. VAT
52
BRKT PANSUPPORT BLK.
5222866067
Not Available
53
BURR-RIVET
7555904
$1,56 Unit Price incl. VAT
54
RIVET
7621467
$2,09 Unit Price incl. VAT
55
NUT FLEX (10)
7542703
Not Available
56
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
