1
Engine displacement
900
2
Year
2012
3
Trim
RANGER 900 DIESEL - R12TH90DG
4
Parts Catalog
CYLINDER HEAD AND BONNET
5

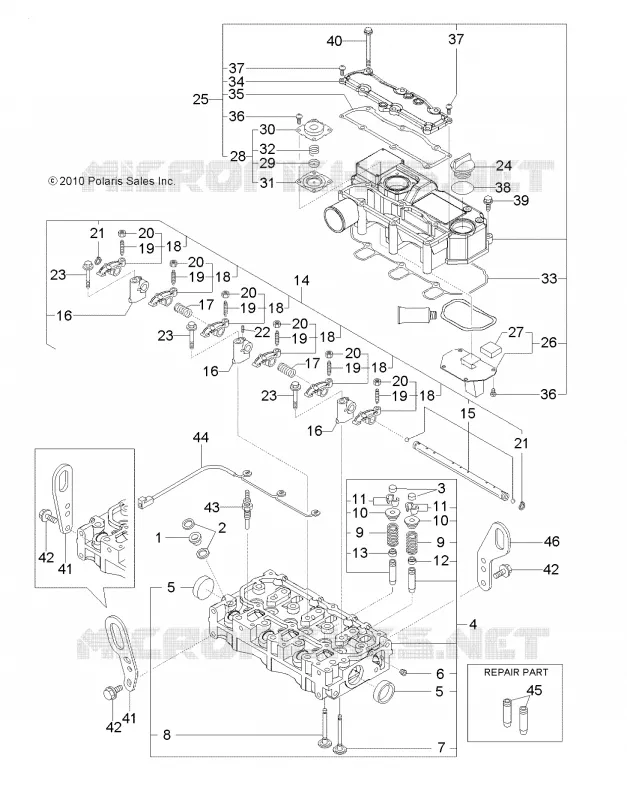

Parts Diagram
Parts Catalog
CYLINDER BLOCK
by
EXHAUST
CYLINDER HEAD AND BONNET
1
2
3
4
5
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
16
16
17
17
18
18
18
18
18
18
19
19
19
19
19
19
20
20
20
20
20
20
21
21
22
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
37
38
39
40
41
41
42
42
42
43
44
45
46
1
Protector Nozzle
3070039
$15,74 Unit Price incl. VAT
2
Gasket Nozzle
3070040
$10,49 Unit Price incl. VAT
3
Cap Valve
3070041
$12,59 Unit Price incl. VAT
4
Asm. Cylinder Head [Incl. 5-13]
3070042
$2 698,49 Unit Price incl. VAT
5
Plug
3070043
$15,74 Unit Price incl. VAT
6
Plug
3070011
Not Available
7
Valve Intake
3070044
Not Available
8
Valve Exhaust
3070045
Not Available
9
Spring Valve
3070046
$26,24 Unit Price incl. VAT
10
Retainer Spring
3070047
$26,24 Unit Price incl. VAT
11
Cotter
3070048
Not Available
12
Seal Valve Stem [Intake]
3070049
$25,19 Unit Price incl. VAT
13
Seal Valve Stem [Exhaust]
3070050
$25,19 Unit Price incl. VAT
14
Asm. Arm Support [Incl. 15-22]
3070051
Not Available
15
Asm. Rocker Shaft
3070052
Not Available
16
Shaft Rocker Arm
3070053
Not Available
17
Spring Shaft
3070054
$9,23 Unit Price incl. VAT
18
Asm. Rocker Arm [Incl. 19 20]
3070055
$56,90 Unit Price incl. VAT
19
Screw Valve Adjust
3070056
Not Available
20
Nut
3070057
Not Available
21
Circlip
3070058
Not Available
22
Screw
3070059
Not Available
23
Bolt
3070060
Not Available
24
Cover Filler
3070061
$29,39 Unit Price incl. VAT
25
Asm. Head Bonnet [Incl. 26-37]
3070062
Not Available
26
Plate Baffle [Qty. 1 of 27]
3070063
$139,64 Unit Price incl. VAT
27
Baffle Breather
3070064
$16,79 Unit Price incl. VAT
28
Asm. Diaphragm [Incl. 29-32]
3070066
$120,74 Unit Price incl. VAT
29
Plate Center
3070067
Not Available
30
Cover Diaphragm
3070068
Not Available
31
Diaphragm
3070069
Not Available
32
Spring Diaphragm
3070070
Not Available
33
Gasket Bonnet
3070071
$89,24 Unit Price incl. VAT
34
Cover Bonnet
3070072
$173,24 Unit Price incl. VAT
35
Gasket Bonnet Cover
3070073
$89,24 Unit Price incl. VAT
36
Screw
3070074
Not Available
37
Screw
3070076
Not Available
38
O-Ring
3070077
$10,49 Unit Price incl. VAT
39
Bolt
3070078
$7,34 Unit Price incl. VAT
40
Bolt
3070079
$7,34 Unit Price incl. VAT
41
Lifter Engine Rear
3070372
Not Available
42
Bolt
3070080
Not Available
43
Plug Glow
3070081
$194,24 Unit Price incl. VAT
44
Connector Glow Plug
3070082
$99,74 Unit Price incl. VAT
45
Guide Valve
3070083
$83,99 Unit Price incl. VAT
46
Lifter Engine Front
3070373
$22,46 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
