1
Engine displacement
500
2
Year
2010
3
Trim
RANGER 4X4 500 EFI - R10TH50AG/AR
4
Parts Catalog
EXHAUST
5

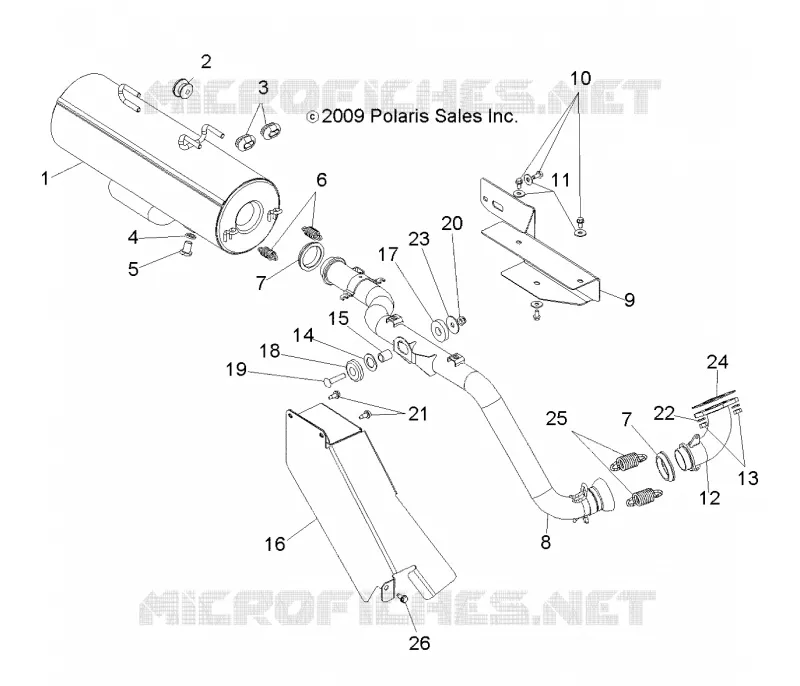

Parts Diagram
Parts Catalog
CYLINDER
by
FLYWHEEL AND STATOR
EXHAUST
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
SILENCER BLACK [INCL. 19 22]
1262115489
$1 133,99 Unit Price incl. VAT
2
Grommet Silencer Mount
5413377
5414307
$9,44 Unit Price incl. VAT
3
GORMMET SILENCER MOUNT
5436598
$7,34 Unit Price incl. VAT
4
WASHER-CLEAN OUT .51X.75X.09
7556230
$2,09 Unit Price incl. VAT
5
BOLT-1/2-20X5/8 HXHDCAP-GR5-P
7512666
$4,19 Unit Price incl. VAT
6
SPRING EXHAUST
7041804
$16,79 Unit Price incl. VAT
7
Seal Exhaust
5243518
$52,49 Unit Price incl. VAT
8
Pipe Exhaust Black
1262118489
Not Available
9
Shield Heat Exhaust Rear
5253803
$89,24 Unit Price incl. VAT
10
SCR-1/4-20X1/2 TFM HW-M
7518490
$2,09 Unit Price incl. VAT
11
WASHER-.28 X .81 X .06 ST-M
7555935
$4,19 Unit Price incl. VAT
12
Manifold Black
1261951489
Not Available
13
Nut
3087199
Not Available
14
WASHER
7555863
$4,19 Unit Price incl. VAT
15
BUSHING-.459 X.625 X.75
5010192
$12,59 Unit Price incl. VAT
16
Shield Heat Tank
5253805
$68,24 Unit Price incl. VAT
17
WASHER RUBBER
5410436
$3,14 Unit Price incl. VAT
18
DAMPENER VIBRATION
5412508
$9,44 Unit Price incl. VAT
19
BOLT CARRIAGE
7515316
$4,19 Unit Price incl. VAT
20
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
21
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
22
WASHER Substituted by 3080530
3080051
$6,29 Unit Price incl. VAT
23
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
24
GASKET EXH.
3085075
$73,49 Unit Price incl. VAT
25
SPRING-EXHAUST
7041789
$16,79 Unit Price incl. VAT
26
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
