1
Engine displacement
500
2
Year
2002
3
Trim
500 XC SP F/O
4
Parts Catalog

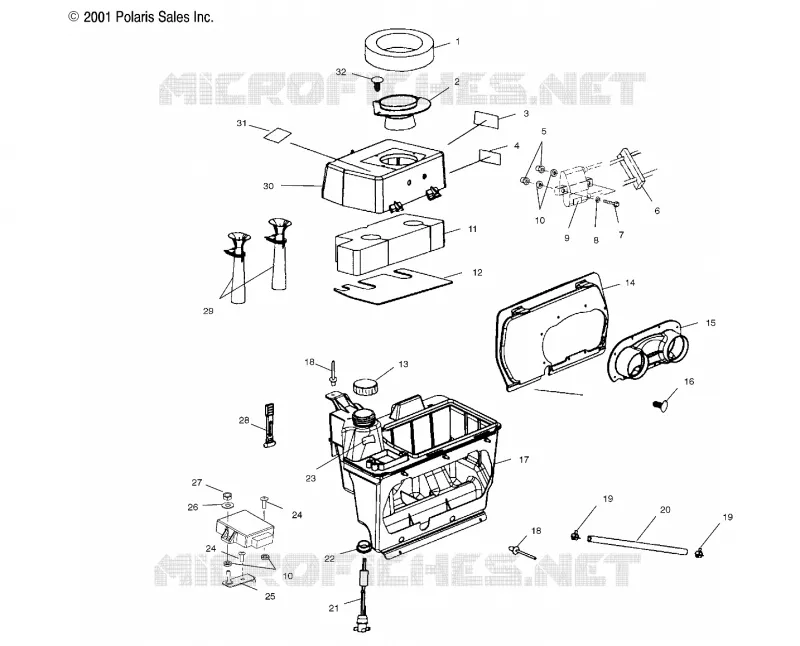

AIR BOX
5
Parts Diagram
Parts Catalog
by
CHAINCASE (REVERSE MODELS)
AIR BOX
1
FOAM AIRBOX CHIMNEY EDGE
5811882
$36,74 Unit Price incl. VAT
2
DUCT AIR INLET
5433664
$19,83 Unit Price incl. VAT
3
Decal Adjustable Driven Clutch
7073820
Not Available
4
DECAL GREASING
7073426
Not Available
5
NUT-M6X1.00 NITRILE GREY
7547103
$15,74 Unit Price incl. VAT
6
T-CLIP(10)
7080471
$6,29 Unit Price incl. VAT
7
SCREW-M6X1.00X40-HX/FL-YD
7517610
$3,14 Unit Price incl. VAT
8
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$3,14 Unit Price incl. VAT
9
DECAL SPARKPLUG REC.
7077026
$4,82 Unit Price incl. VAT
10
WASHER NYLON
7555932
$4,19 Unit Price incl. VAT
11
FOAM AIRBOX PLATE
5811979
Not Available
12
PLATE INTAKE EDGE
5433665
Not Available
13
CAP OIL VENTED
1240094
1244736
$68,24 Unit Price incl. VAT
14
PLATE CARB ADAPTER
5433514
$211,56 Unit Price incl. VAT
15
BOOT CARB 63MM MIKTM EDGE
5411770
Not Available
16
FASTENER DART(10)
7080431
Not Available
17
AIR SILENCER ASM (Incl. 15 16)
1253336
Not Available
18
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
19
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
20
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
21
FITTING-OIL SENDER
4010224
Not Available
22
GROMMET-OIL SENDER
7052305
$8,39 Unit Price incl. VAT
23
DECAL-OIL VES
7079003
Not Available
24
SCR-#14X1.0 LG HI/LO/TAPER-M
7512098
$3,14 Unit Price incl. VAT
25
WELD-BRKT KOKUSAN CDI TPS
1013201
Not Available
26
BURR RIVET(50) Substituted by 7555904
7555746
7555904
$1,56 Unit Price incl. VAT
27
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
28
STRAP-AIRBOX TOP
5433150
$47,24 Unit Price incl. VAT
29
TUBE INTAKE OUTER
5433662
Not Available
30
ASM-AIR SILENCER COVER (Incl. 2 3 4 31 32)
1253302
$79,47 Unit Price incl. VAT
31
DECAL AIR BOX CAUTION
7075351
Not Available
32
CLIP-FIR TREE DART 6.35MM
7670090
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
