1
Engine displacement
500
2
Year
2001
3
Trim
SPORTSMAN 500 RSE HO - A01CH50AJ
4
Parts Catalog
CLUTCH COVER
5

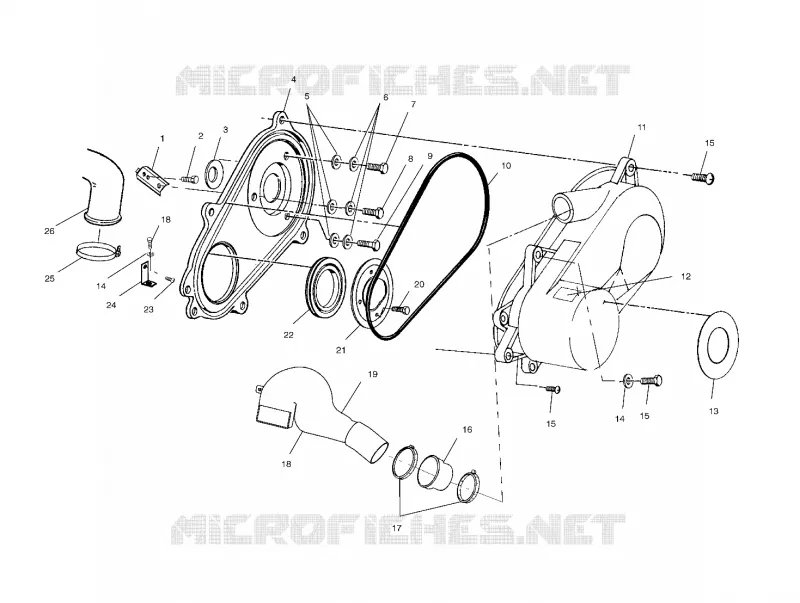

Parts Diagram
Parts Catalog
DRIVEN CLUTCH
by
ELECTRICAL/TAILLIGHT
CLUTCH COVER
1
BRKT R.CLUTCH CVR BLK.
1040519067
Not Available
2
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
3
SEAL COVER CASE
5410489
$25,19 Unit Price incl. VAT
4
Kit Inner Clutch Cover Service [Incl. Inner Cover Seals Screws]
2201851
$246,74 Unit Price incl. VAT
5
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
$9,44 Unit Price incl. VAT
6
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
7
BOLT(10)
7512247
Not Available
8
BOLT
7512277
$9,44 Unit Price incl. VAT
9
BOLT(10)
7512278
Not Available
10
SEAL CLUTCHCOVER
5521301
5526452
$58,58 Unit Price incl. VAT
11
Cover Clutch Outer Black
5433451070
5438142-070
$346,49 Unit Price incl. VAT
12
DECAL WARNING CLUTCH CVR (If built after 10/04/99)
7078689
Not Available
13
Decal #Automatic EBS#
7077666
Not Available
14
WASHER-.28 X .81 X .06 ST-M
7555935
$4,19 Unit Price incl. VAT
15
SCR-#14X1-1/4 LG HI/LO/TAPER-M
7512094
$3,14 Unit Price incl. VAT
16
Boot Duct Hi Flow
5411489
Not Available
17
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
18
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
19
DUCT-CLUTCH OUTLET 16.6 (If built after 3/01/00)
5433980
Not Available
19
DUCT CLUTCH OUTLET 16.6 Substituted by 5433980
5432947
Not Available
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
BRKT RETAINER SEAL BLK. Substituted by 5242046-067
5240409067
$68,24 Unit Price incl. VAT
22
SEAL COVER CASE
5410575
$78,74 Unit Price incl. VAT
23
SCR-#14X3/4 LG HI/LO/TAPER-M
7512095
$9,44 Unit Price incl. VAT
24
BRKT-CLUTCH COVER BLK
5241156067
Not Available
25
CLAMP BAND NARROW
7080413
$5,76 Unit Price incl. VAT
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
