1
Engine displacement
500
2
Year
2001
3
Trim
SPORTSMAN 500 DUSE HO - A01CH50AF
4
Parts Catalog

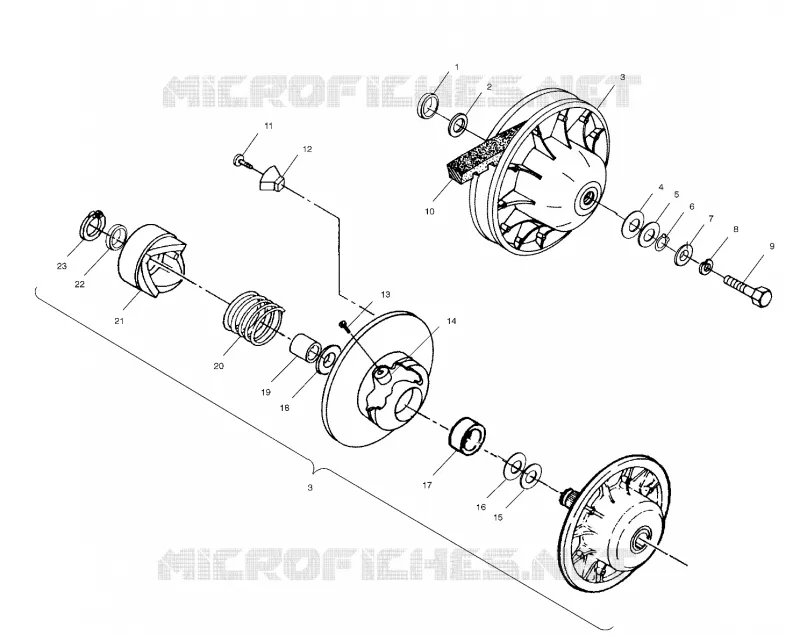

DRIVEN CLUTCH
5
Parts Diagram
Parts Catalog
OIL TANK
by
CLUTCH COVER
DRIVEN CLUTCH
1
2
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
15
15
15
16
17
17
17
17
18
19
20
20
20
20
21
21
21
21
22
23
1
2
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
15
15
15
16
17
17
17
17
18
19
20
20
20
20
21
21
21
21
22
23
1
2
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
15
15
15
16
17
17
17
17
18
19
20
20
20
20
21
21
21
21
22
23
1
2
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
15
15
15
16
17
17
17
17
18
19
20
20
20
20
21
21
21
21
22
23
1
2
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
15
15
15
16
17
17
17
17
18
19
20
20
20
20
21
21
21
21
22
23
1
2
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
15
15
15
16
17
17
17
17
18
19
20
20
20
20
21
21
21
21
22
23
1
2
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
15
15
15
16
17
17
17
17
18
19
20
20
20
20
21
21
21
21
22
23
1
SPACER DRIVEN ATV
5010409
Not Available
2
BUSHING-.906 X 1 3/8 X 16 GA-Y
7556120
$2,09 Unit Price incl. VAT
3
CLUTCH DRVN BRKG 4-STRK.
1322190
Not Available
3
CLUTCH DRVN 3-ANGLE HVY RET (Incl. 8-12 15-18)
1322182
$923,99 Unit Price incl. VAT
4
Washer
7556013
Not Available
5
Bushing
7556010
Not Available
6
Ring Retaining
7710461
Not Available
7
WASHER DOMED
5220646
$4,19 Unit Price incl. VAT
8
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
9
BOLT(10)
7515327
$10,49 Unit Price incl. VAT
10
BELT DRIVE ATV CLOSE TOL(5)
3211077
$107,93 Unit Price incl. VAT
10
Belt Drive
3211069
$109,19 Unit Price incl. VAT
11
BOLT(10)
7511854
$2,09 Unit Price incl. VAT
12
BUTTON RAMP
5430766
5450873
$11,54 Unit Price incl. VAT
13
Screw
7517323
$25,19 Unit Price incl. VAT
14
Roller Taper
1321977
$54,59 Unit Price incl. VAT
15
Washer .025
7556076
$9,44 Unit Price incl. VAT
15
Washer .020
7555898
$2,09 Unit Price incl. VAT
16
Washer .030
7556804
$1,56 Unit Price incl. VAT
17
Bearing
3585710
$34,64 Unit Price incl. VAT
17
Bearing Moveable (1/2 inch)
3576504
$41,99 Unit Price incl. VAT
18
WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]
5211115
$7,34 Unit Price incl. VAT
19
Bearing Moveable 1 Inch
3576511
$52,49 Unit Price incl. VAT
20
SPRING CLUTCH (RED)
7041198
$104,99 Unit Price incl. VAT
20
Spring
7041635
$89,24 Unit Price incl. VAT
21
RAMP STA.BRAKE 4STRK MACH
5131674
$152,24 Unit Price incl. VAT
21
RAMP STA COMP (MACH)
5132344
$146,99 Unit Price incl. VAT
22
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
23
Ring Retaining
7710448
$5,76 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
