DRIVE TRAIN, CLUTCH, PRIMARY FOR 500 WIDETRAK LX FROM 2011

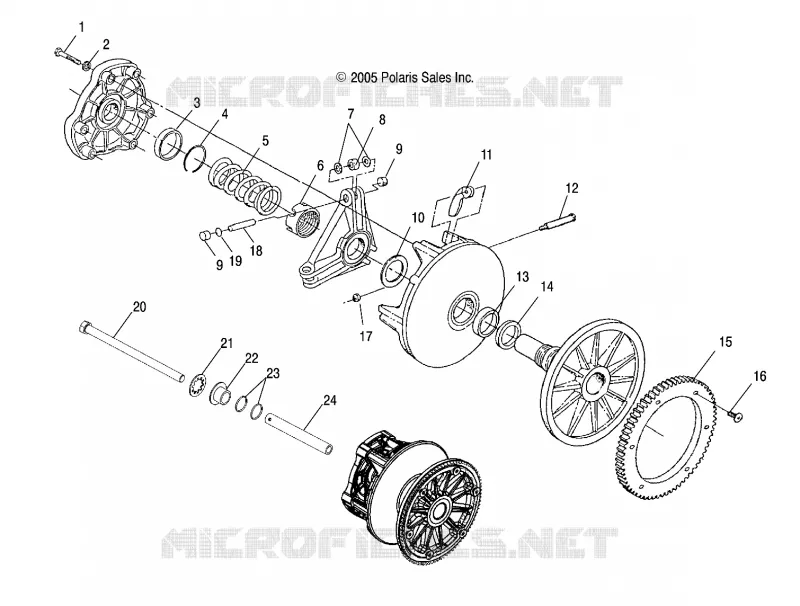

DRIVE TRAIN, CLUTCH, PRIMARY

-

KIT CLUTCH UPDATE [INCL.5 7-12 ]

2200386

$314,99 Unit Price incl. VAT

-

Asm. Drive Clutch Basic ES [Incl. 1 2 4 6-8 12-18]

1322838

$1 086,74 Unit Price incl. VAT

1

SCR-1/4-20X2 1/4 HX FLNG GR5-Y

7518349

$2,09 Unit Price incl. VAT

2

WASHER SPRING LOCK

7552801

$3,14 Unit Price incl. VAT

3

BEARING COVER GARMAX

3576516

$62,99 Unit Price incl. VAT

4

RING RETAINING COVER

7710417

$2,09 Unit Price incl. VAT

5

Spring Clutch 100/340

7043121

$115,49 Unit Price incl. VAT

6

Nut Jam

5020425

$41,99 Unit Price incl. VAT

7

WASHER

5430945

$3,14 Unit Price incl. VAT

8

ASM. ROLLER AND BUSHING

1321622

$62,99 Unit Price incl. VAT

9

BUTTON GUIDE

5430445

$11,54 Unit Price incl. VAT

10

SPACER-1.350 X 1.750 X .020-Y

5210752

$3,14 Unit Price incl. VAT

10

SPACER-1.350X1.750X.025-Y

5242981

$7,34 Unit Price incl. VAT

10

SPACER-1.350 X 1.750 X .050-Y

5210754

$6,29 Unit Price incl. VAT

10

SPACER-1.350X1.750X.032-Y

5210753

$4,19 Unit Price incl. VAT

11

ASM-WEIGHT/BUSHING (10-62) [INTL ONLY]

1321586

$73,49 Unit Price incl. VAT

12

PIN HARDENED WEIGHT

7515105

$26,24 Unit Price incl. VAT

13

SLEEVE BEARING

3576502

$40,94 Unit Price incl. VAT

14

INSERT MOVEABLE

5010188

$13,64 Unit Price incl. VAT

15

Kit Ring Gear Lightweight

2877485

$163,79 Unit Price incl. VAT

16

SCR-SHFL-5/16-18X0.625 GR5 ZY3 [E.S.]

7515351

$7,34 Unit Price incl. VAT

17

NUT-10-24-FLEX LOC-Z

7541906

$6,29 Unit Price incl. VAT

18

PIN ROLLER

5133079

$11,54 Unit Price incl. VAT

19

Kit - Shim Drive Clutch

2200387

$47,24 Unit Price incl. VAT

20

BOLT(10)

7512565

$36,74 Unit Price incl. VAT

21

WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]

7575202

$9,44 Unit Price incl. VAT

22

WASHER CLUTCH RETAINER

5010287

$18,89 Unit Price incl. VAT

23

O-RING CLUTCH BOLT

5410507

$2,09 Unit Price incl. VAT

24

SPACER CLUTCH BOLT

5020513

$60,89 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
