1
Engine displacement
550
2
Year
2014
3
Trim
SPORTSMAN X2 550 EPS LE UE - A14TN5EAI
4
Parts Catalog

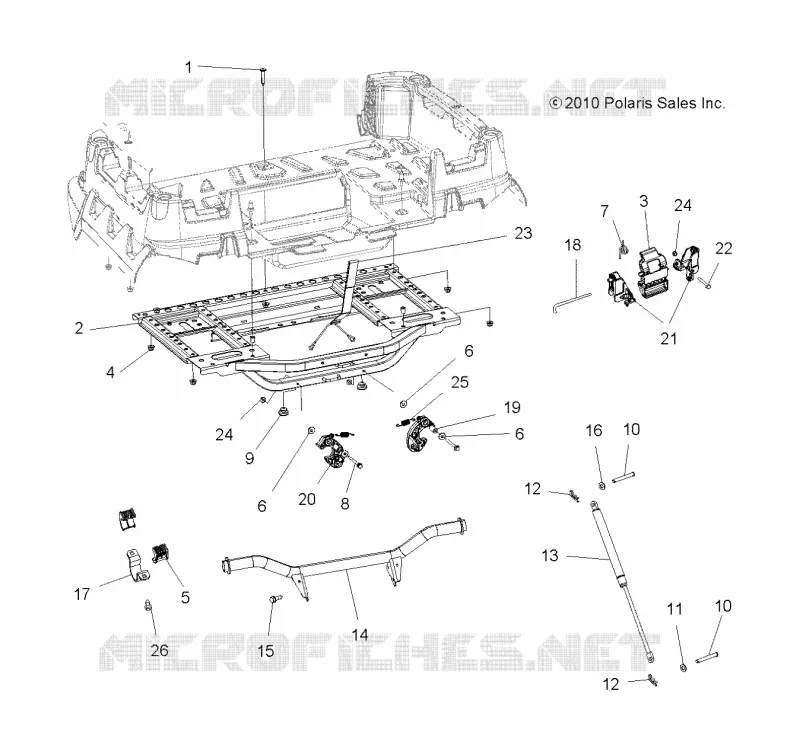

BED BOX FRAME LATCH
5
Parts Diagram
Parts Catalog
BODYWORK
by
CABIN
BED BOX FRAME LATCH
1
2
3
4
5
6
6
6
7
8
9
10
10
11
12
12
13
14
15
11
17
17
18
19
20
21
22
23
24
24
25
15
1
2
3
4
5
5
6
7
8
1
SCR-5/16-18X1.75 TX-M
7518235
$3,14 Unit Price incl. VAT
2
Frame Box Black
1017689329
$608,99 Unit Price incl. VAT
3
Latch Seat Passenger
5438642
Not Available
4
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
5
BUSHING STEERING UPPER
5438904
$9,44 Unit Price incl. VAT
6
SHIM
7556145
$13,64 Unit Price incl. VAT
7
Spring Torsion
7043694
$10,49 Unit Price incl. VAT
8
Screw
7518512
$9,44 Unit Price incl. VAT
9
BUMPER-RUBBER
5412067
$7,34 Unit Price incl. VAT
10
PIN-CLEVIS 5/16X1 1/2
7661163
$7,34 Unit Price incl. VAT
11
SPACER-.34 ID X .56 OD X .31
7556373
$6,29 Unit Price incl. VAT
12
PIN HITCH
7661644
$4,19 Unit Price incl. VAT
13
SHOCK DUMP BOX
7041725
$125,99 Unit Price incl. VAT
14
Pivot Box Rear Black
1017714329
Not Available
15
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
16
SPACER-.34 ID X .56 OD X .31
7556373
$6,29 Unit Price incl. VAT
17
Bracket Upper Steering Bushing
5249143
$52,49 Unit Price incl. VAT
17
BRACKET STEERING UPPER
5259997
$52,49 Unit Price incl. VAT
18
Rod Pivot Latch
5336528
Not Available
19
Tube Spacer
5336357
Not Available
20
Hook Box
5438512
$19,94 Unit Price incl. VAT
21
Pivot Seat Passenger
5438643
$18,89 Unit Price incl. VAT
22
SCR-HXFL-M6X1.0X50 TDFM ZPB
7519090
$7,34 Unit Price incl. VAT
23
Asm. Strap Box Latch
2684530
$36,74 Unit Price incl. VAT
24
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
25
Spring Extension Latch
7043671
$52,49 Unit Price incl. VAT
26
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
