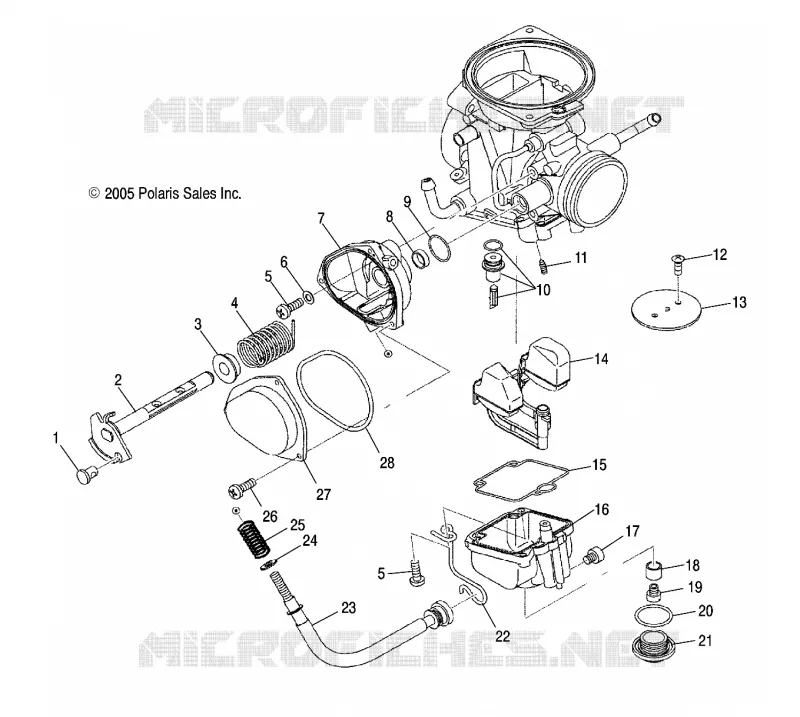

ENGINE, CARBURETOR, LOWER FOR SPORTSMAN TOURING 500 HO - A13DH50AX/AZ FROM 2013

ENGINE, CARBURETOR, LOWER

-

Asm. Carburetor [Incl. All less 11]

3131740

$1 065,74 Unit Price incl. VAT

1

CABLE GUIDE MIKUNI BTM36/30

3130543

$62,99 Unit Price incl. VAT

2

THROTTLE SHAFT ASSM.

3130931

$120,74 Unit Price incl. VAT

3

Ring

3131679

$3,14 Unit Price incl. VAT

4

SPRING

3130927

$10,49 Unit Price incl. VAT

5

SCREW

3130933

$4,19 Unit Price incl. VAT

6

WASHER

3130926

$7,34 Unit Price incl. VAT

7

CASE

3130925

$104,99 Unit Price incl. VAT

8

SEAL

3130515

$20,99 Unit Price incl. VAT

9

O-RING

3130928

$12,59 Unit Price incl. VAT

10

Valve Needle (1.5) (1.5)

3131359

$136,49 Unit Price incl. VAT

11

Jet Pilot [#40]

3130624

$52,49 Unit Price incl. VAT

12

Screw

3131475

$7,34 Unit Price incl. VAT

13

VALVE THROTTLE (120)

3130907

$83,99 Unit Price incl. VAT

14

FLOAT ASM.

3130921

$125,99 Unit Price incl. VAT

15

SEAL

3130917

$13,64 Unit Price incl. VAT

16

FLOAT BODY ASSM.

3130923

$125,99 Unit Price incl. VAT

17

SCREW

3130935

$10,49 Unit Price incl. VAT

18

RING

3130919

Not Available

19

MAIN JET #152.5 (#152.5)

3130570

$16,79 Unit Price incl. VAT

20

O-RING

3130239

Not Available

21

BOLT BANJO

3130321

$41,99 Unit Price incl. VAT

22

CLIP

3131242

$52,49 Unit Price incl. VAT

23

ASM-CABLE ADJUSTER

3131295

Not Available

24

WASHER

3131296

$17,84 Unit Price incl. VAT

25

SPRING THROTTLE ADJUSTER

3130010

$18,89 Unit Price incl. VAT

26

Screw

3130924

$3,14 Unit Price incl. VAT

27

COVER

3130930

$68,24 Unit Price incl. VAT

28

O-RING

3130929

$20,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
