1
Engine displacement
1000
2
Year
2022
3
Trim
GENERAL XP 1000 LE TROY LEE DESIGNS EDITION
4
Parts Catalog

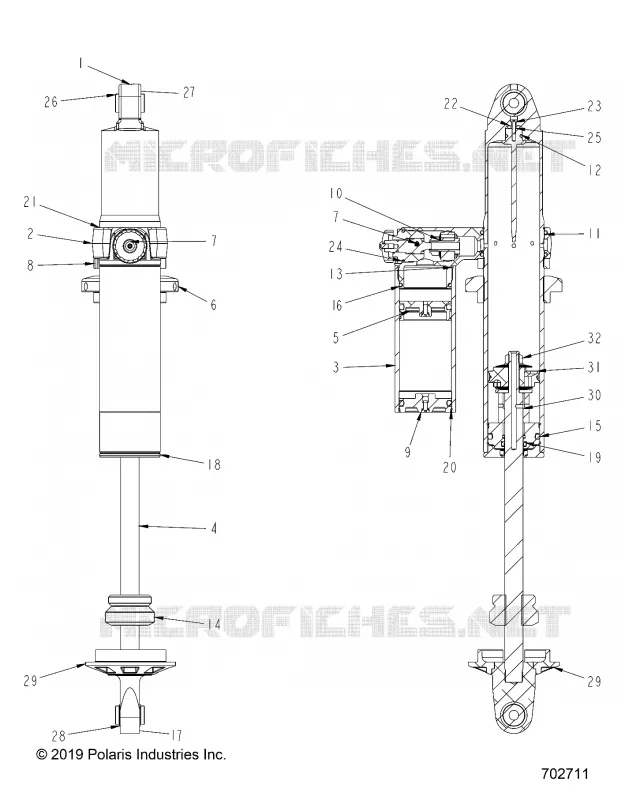

REAR SUSPENSION SHOCK INTERNALS
5
Parts Diagram
Parts Catalog
REAR SUSPENSION CONTROL ARMS
by
SUSPENSION, REAR SHOCK MOUNTING
REAR SUSPENSION SHOCK INTERNALS
-
1
2
1
1
5
6
7
7
8
9
10
11
12
13
1
15
16
1
1
1
20
21
22
23
24
1
26
27
28
29
29
1
31
-
SHOCK REAR 2.50 [INCL. 1-32]
7045767
$1 207,49 Unit Price incl. VAT
1
WRENCH-8MMX10MM OPEN END
Not Available
2
2.5 BRIDGE WER ADJUSTER
1800958
$314,99 Unit Price incl. VAT
3
WRENCH-8MMX10MM OPEN END
Not Available
4
WRENCH-8MMX10MM OPEN END
Not Available
5
RES PISTON 2.5IN ASM
1800752
$272,99 Unit Price incl. VAT
6
2.5IN SPRING NUT (CLEAR)
1800836
$162,74 Unit Price incl. VAT
7
ASM. SS RETENTION NUT (GOLD)
1800857
$204,74 Unit Price incl. VAT
8
2.5IN CROSSOVER RING/ JAM NUT
1800842
$68,24 Unit Price incl. VAT
9
2.5 END CAP WITH BUILT IN CHARGE PORT
1800960
$141,74 Unit Price incl. VAT
10
VALVE CHECK ASSEMBLY
1800848
$115,49 Unit Price incl. VAT
11
O-RING 2-230
1800497
$10,49 Unit Price incl. VAT
12
O-RING
1800095
$2,09 Unit Price incl. VAT
13
O-RING 2-033
1800613
$20,99 Unit Price incl. VAT
14
WRENCH-8MMX10MM OPEN END
Not Available
15
O-RING 2-327
1800508
$10,49 Unit Price incl. VAT
16
O-RING 2-225
1800500
$3,66 Unit Price incl. VAT
17
WRENCH-8MMX10MM OPEN END
Not Available
18
WRENCH-8MMX10MM OPEN END
Not Available
19
WRENCH-8MMX10MM OPEN END
Not Available
20
ID RETAINING RING 2.5#
1800847
$41,99 Unit Price incl. VAT
21
2.48 X 0.0625 WIRE RING
1800846
$15,74 Unit Price incl. VAT
22
O-RING 2-202
1800964
$5,24 Unit Price incl. VAT
23
#8-32 X .500 LOW HEAD SCREW
1800843
$9,44 Unit Price incl. VAT
24
O-RING 2-122
1800503
$3,14 Unit Price incl. VAT
25
WRENCH-8MMX10MM OPEN END
Not Available
26
BEARING HCOM9T-10MM
1800808
$80,84 Unit Price incl. VAT
27
RETAINING RING FOR I. 0625 BORE
1800966
$6,29 Unit Price incl. VAT
28
O-RING 2-312 1000312
1800810
$6,81 Unit Price incl. VAT
29
RETAINER-SPRING 2.5#
1501211
$83,99 Unit Price incl. VAT
30
WRENCH-8MMX10MM OPEN END
Not Available
31
NUT 7/16 NYLOCK (1425112)
1800638
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
