1
Engine displacement
550
2
Year
2016
3
Trim
550 WIDETRAK LX
4
Parts Catalog

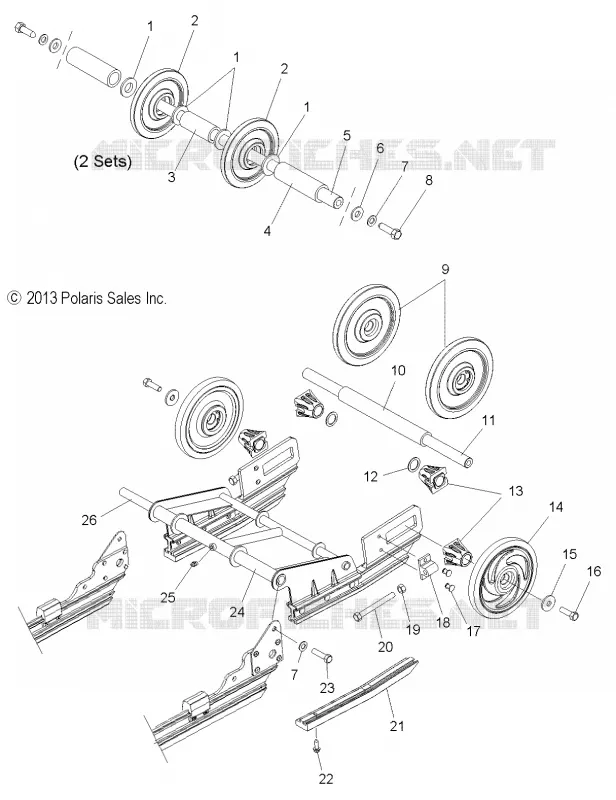

SUSPENSION EXTENSION
5
Parts Diagram
Parts Catalog
SUSPENSION, REAR TORQUE ARM AND PIVOT ARM
by
FRONT SUSPENSION
SUSPENSION EXTENSION
1
1
1
2
2
2
2
2
2
3
4
5
6
7
7
23
9
9
9
10
11
12
13
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
1
WASHER FLAT
7555726
$3,14 Unit Price incl. VAT
2
INSERT WHEEL LARGE
5431420
5431531
$19,94 Unit Price incl. VAT
2
ASM. WHEEL CARRIER [INCL. INSERTS]
1543021
Not Available
2
INSERT WHEEL SMALL
5430723
$7,34 Unit Price incl. VAT
3
SPACER
5333020067
$34,64 Unit Price incl. VAT
4
SPACER
5333019067
$27,29 Unit Price incl. VAT
5
SHAFT SPANNER
5139874
$68,24 Unit Price incl. VAT
6
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
7
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
8
SCR-3/8-16X1.50-HX/CP-GR5-P80Y
7518005
$5,76 Unit Price incl. VAT
9
BEARING
3514384
3515142
$34,64 Unit Price incl. VAT
9
ASM. WHEEL
1594087
Not Available
9
RING RETAINING
7710444
$15,74 Unit Price incl. VAT
10
SPACER IDLER
5333523
$20,99 Unit Price incl. VAT
11
SHAFT IDLER
5020879
$78,74 Unit Price incl. VAT
12
BUSHING
7555918
$3,14 Unit Price incl. VAT
13
SPACER IDLER
5432535
$20,99 Unit Price incl. VAT
14
BEARING
3514384
3515142
$34,64 Unit Price incl. VAT
14
ASM. IDLER WHEEL SCROLLED SILVER
1594083244
$99,74 Unit Price incl. VAT
14
RING RETAINING
7710444
$15,74 Unit Price incl. VAT
15
WASHER BELLE
7556130
$11,54 Unit Price incl. VAT
16
SCR-HH-3/8-16X1.25 GR5 ZYNY
7517731
$2,09 Unit Price incl. VAT
17
RIVET
7621501
$4,19 Unit Price incl. VAT
18
BLOCK IDLER BOLT ADJUSTING
5130530
$62,99 Unit Price incl. VAT
19
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
20
SCR-3/8-16X3 1/2HXHD TAP GR5-Y
7515459
$10,49 Unit Price incl. VAT
21
SLIDER RAIL WHITE
5521452
$73,49 Unit Price incl. VAT
22
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
23
SCR-3/8-16X1.50-HX/CP-GR5-P80Y
7518005
$5,76 Unit Price incl. VAT
24
ASM. RAIL ARTICULATED [INCL. 17 18]
1543214
Not Available
25
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
26
SHAFT PIVOT ARM
5020725
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
