1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 6X6 EURO
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
OIL PUMP
by
SUPPORT

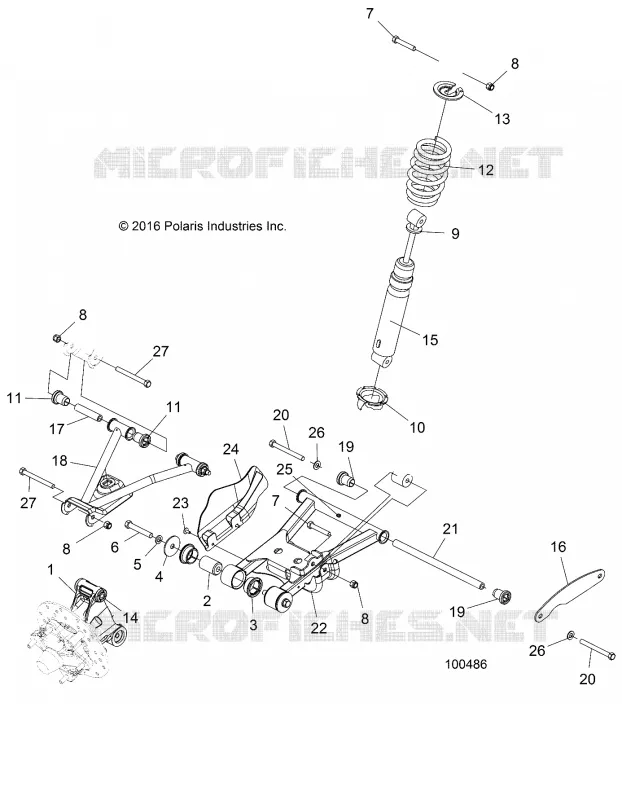

REAR SUSPENSION
1
1
2
3
4
5
6
7
7
8
8
8
8
9
10
11
11
12
13
11
15
16
17
18
18
11
11
20
20
21
22
22
23
24
24
25
26
26
27
27
1
CARRIER-BEARING WHEEL RH(MACH)
5137436
$175,34 Unit Price incl. VAT
1
CARRIER-BEARING WHEEL LH(MACH)
5139363
$188,99 Unit Price incl. VAT
2
BUSHING BEARING CARRIER
5632291
$41,99 Unit Price incl. VAT
3
BUSHING CONTROL LOWER BLACK
5438902
$8,39 Unit Price incl. VAT
4
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
5
WASHER LOCK
7552614
$3,14 Unit Price incl. VAT
6
Screw
7517873
$4,19 Unit Price incl. VAT
7
SCREW
7515415
$2,09 Unit Price incl. VAT
8
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
9
SHOCK-RR IRS 6X6
7043451
$430,49 Unit Price incl. VAT
10
CAM-SPRING ADJUST 1-3/8
5631014
$68,24 Unit Price incl. VAT
11
ASM-BUSHING HD W/SEAL 6.75 FLG (HEAVY DUTY)
1543326
$24,14 Unit Price incl. VAT
12
SPG-COMP 130/165 13.8LG M.BLK
7044722458
Not Available
13
RETAINER-SPRING STEEL
5251753
$19,94 Unit Price incl. VAT
14
ASM-BUSHING HD W/SEAL 6.75 FLG (HEAVY DUTY)
1543326
$24,14 Unit Price incl. VAT
15
Sleeve Shock Protector
5433551
$83,99 Unit Price incl. VAT
16
STRAP-REAR GEARCASE 6X6 M. BLK
5252941458
$47,24 Unit Price incl. VAT
17
Shaft A-Arm. Short
5020826
$23,09 Unit Price incl. VAT
18
WELD-UPPER CONTROL ARM RH M. BLK
1014321458
$173,24 Unit Price incl. VAT
18
WELD-UPPER CONTROL ARM LH M. BLK
1014320458
$178,49 Unit Price incl. VAT
19
ASM-BUSHING HD W/SEAL 6.75 FLG (HEAVY DUTY)
1543326
$24,14 Unit Price incl. VAT
20
SCR-3/8-24X1 3/4 HX GR5 P30 Y [TO 9/9/2019]
7520340
7521149
$6,29 Unit Price incl. VAT
21
SHAFT-A-ARM C-BORE
5139929
$52,49 Unit Price incl. VAT
22
CONTROL LOWER MATTE BLACK LH
1015888458
$173,24 Unit Price incl. VAT
22
CONTROL LOWER MATTE BLACK RH
1015889458
$173,24 Unit Price incl. VAT
23
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
24
SHIELD CV REAR RH MATTE BLACK
5435009070
$47,24 Unit Price incl. VAT
24
SHIELD CV REAR LH MATTE BLACK
5435008070
$47,24 Unit Price incl. VAT
25
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
26
WASHER
7556153
$3,66 Unit Price incl. VAT
27
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
