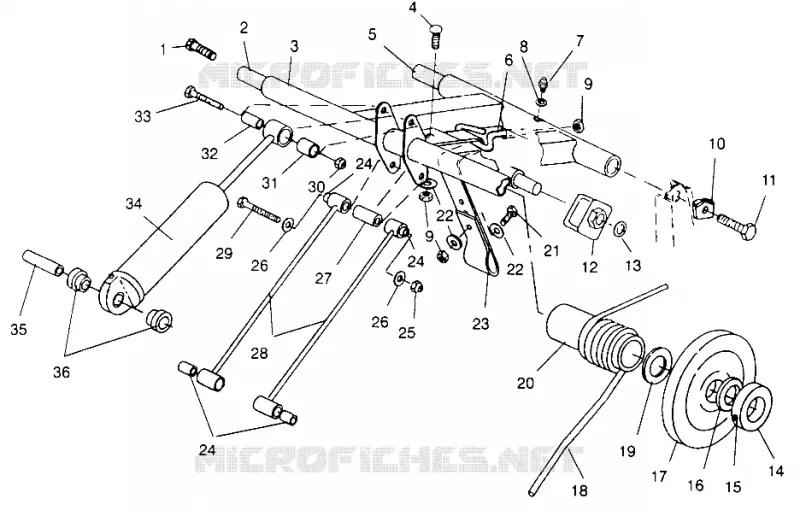

REAR TORQUE ARM ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B013) FOR EURO ULTRA SP

BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)

7515493

Not Available

SHAFT R.TORQUE UPPER

5020845

$115,49 Unit Price incl. VAT

ARM R.TORQUE BLK Substituted by 2200914 (X-10 Blk)

1541024067

Not Available

SHAFT LOW RR TORQUE

5020843

Not Available

SCR-RHCAR-5/16-18X0.75 GR5 ZY3

7512377

$9,44 Unit Price incl. VAT

BOLT EYE

7010050

Not Available

WASHER-.250X.563X.047 WRGHT-Y

7558203

$6,29 Unit Price incl. VAT

FITTING LUBRICATION

7080433

$2,09 Unit Price incl. VAT

NUT FLANGE

7542321

$2,09 Unit Price incl. VAT

LOCK BOLT MECHANICAL

5211649

Not Available

BOLT(10)

7515526

7517731

$2,09 Unit Price incl. VAT

ROLLER SPRING ADJ.

5431168

Not Available

CLIP PUSH ON

7080394

$4,19 Unit Price incl. VAT

COLLAR-BRG. LOCK

5010155

Not Available

SCREW SOCKET SET

7512257

$7,34 Unit Price incl. VAT

WASHER THRUST(10) Substituted by 7555871

7555862

$10,49 Unit Price incl. VAT

WHEEL CARRIER

1543023

Not Available

WASHER THRUST

7555787

$10,49 Unit Price incl. VAT

SPRING RH TORS(.421DIA) (.421) Med.

7041462067

$209,99 Unit Price incl. VAT

SPRING LH TORS(.437/77) (437)

7041465067

Not Available

SPRING LH TORS(.406DIA) (.406) Std.

7041463067

Not Available

SPRING RH TORS(.406DIA) (.406) Std.

7041464067

Not Available

SPRING RH TORS(.437/77) (437)

7041466067

$182,69 Unit Price incl. VAT

SPRING LH TORS(.421DIA) (.421) Med.

7041461067

Not Available

SLEEVE TORSION SPRING

5431923

$11,54 Unit Price incl. VAT

SCR-5/16-18X1-HX/FLG-GR5-Y

7515307

$7,34 Unit Price incl. VAT

WASHER-.328X1.25X16GA FL-Y

7555716

$3,14 Unit Price incl. VAT

STRAP LIMITER (RR QA)

5411061

Not Available

BUSHING PIVOT TUBE

5020561

$2,61 Unit Price incl. VAT

NUT FLEXLOC

7542411

$6,29 Unit Price incl. VAT

WASHER WAVE SPRING(10)

7555795

$2,09 Unit Price incl. VAT

SPACER

5333420

$19,20 Unit Price incl. VAT

ROD SHOCK

1541015067

Not Available

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$4,19 Unit Price incl. VAT

NUT FLEX-LOC(10)

7542303

$11,54 Unit Price incl. VAT

BUSHING

5430537

$7,34 Unit Price incl. VAT

BUSHING R.SHOCK

5333030

Not Available

SCR-HH-5/16-18X1.75 GR5 ZY3

7512329

$7,34 Unit Price incl. VAT

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

BUSHING (1.24)

5020640

Not Available

BUSHING SHOCK .340

5431542

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
