BRAKES, BRAKE LINES AND MASTER CYLINDER
5

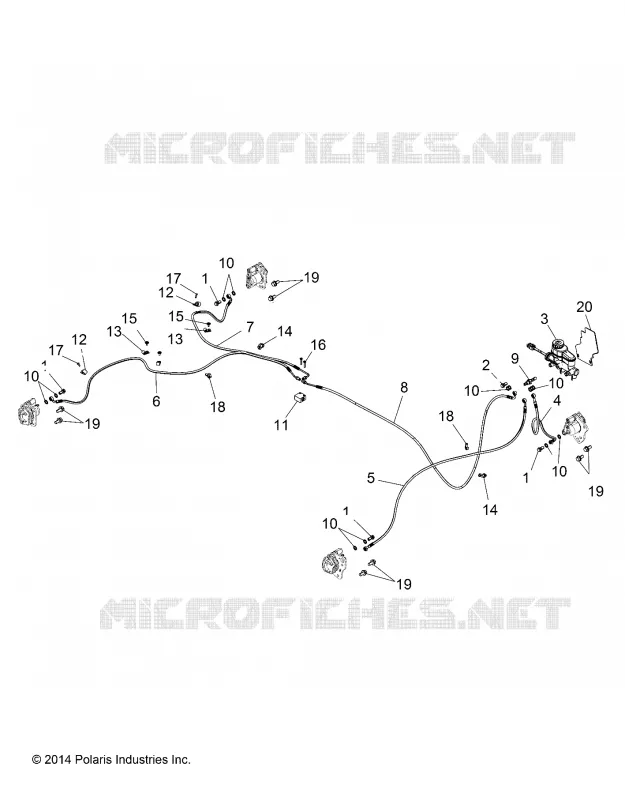

Parts Diagram
Parts Catalog
TAILGATE ASM.
by
BRAKES, FRONT BRAKE CALIPER
BRAKES, BRAKE LINES AND MASTER CYLINDER
1
1
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
11
12
12
13
13
14
14
15
15
16
17
17
18
18
19
19
19
19
20
1
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
2
BOLT-BANJO 10MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
3
ASM-M/C-T HBII STD PUSH ROD
1912463
$482,99 Unit Price incl. VAT
4
LINE BRAKE FRONT LEFT 22.25 INCH
1912283
$89,24 Unit Price incl. VAT
5
LINE BRAKE FRONT RIGHT 40 INCH
1912284
$99,74 Unit Price incl. VAT
6
LINE-BRK RR 52# 20F 70B 90 JJ
1912104
$167,99 Unit Price incl. VAT
7
LINE-BRK RL 39# 90F 70B 270 J
1912105
$152,24 Unit Price incl. VAT
8
LINE BRAKE
1912285
$141,74 Unit Price incl. VAT
9
SWITCH-BRK M10X1.25 DBL SEALED [TO 10/01/2022]
4014262
4081264
$153,29 Unit Price incl. VAT
10
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
11
FITTING-TEE BRAKE
7052293
$110,24 Unit Price incl. VAT
12
CLAMP-CABLE 9/16 I.D.
7080499
$10,49 Unit Price incl. VAT
13
CLAMP-HOSE .312DIA VINYL COAT
7080683
$4,19 Unit Price incl. VAT
14
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
15
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
16
SCR-10-24X1 PN TRX TFS STL-Y
7518552
$7,34 Unit Price incl. VAT
17
RIVET-POP 5/32(.251-.375)-ST-B
7621323
$2,09 Unit Price incl. VAT
18
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
19
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
20
SHIELD-MASTER CYL GALV
5258202
$16,79 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
