1
Engine displacement
700
2
Year
2004
3
Trim
A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU
4
Parts Catalog
DECALS
5

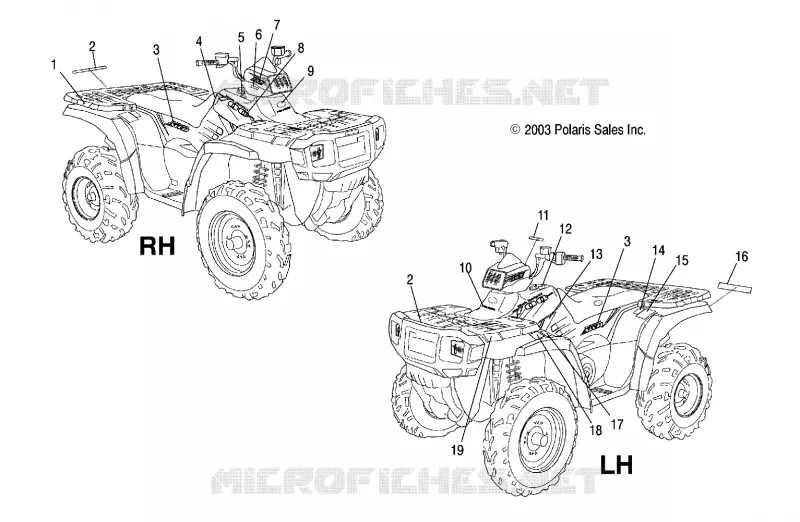

Parts Diagram
Parts Catalog
FRONT RACK BUMPER MOUNTING
by
AIR BOX
DECALS
1
2
2
3
3
3
3
3
3
3
3
3
3
3
3
4
5
6
7
7
7
7
8
8
8
8
9
10
10
11
12
13
13
13
13
14
15
16
16
17
18
19
19
1
2
2
3
4
4
5
6
7
7
7
7
7
7
8
8
9
10
11
12
13
14
14
14
15
15
16
17
17
18
18
19
1
Decal Reflector Red
7079927
Not Available
2
Decal Warning Front/Rear Rack
7170912
Not Available
3
Decal #AWD# Side Panel RH (AP)(AQ)
7172372
Not Available
3
Decal Side Panel Lower AWD RH (AU)(CU)[If built after 9/01/03]
7170266
Not Available
3
Decal Side Panel Lower AWD LH (AU)(CU)[If built before 9/01/03]
7171904
Not Available
3
Decal Side Panel Lower AWD RH (AU)(CU)[If built before 9/01/03]
7171905
Not Available
3
Decal Side Panel Lower AWD LH (AU)(CU)[If built after 9/01/03]
7170200
Not Available
3
Decal #AWD# Side Panel LH (AP)(AQ)
7172371
Not Available
4
Decal Age Warning ATV
7078253
Not Available
5
Decal Warning AWD Switch
7079780
Not Available
6
Decal Headlight Adjustment
7078003
Not Available
7
Decal #EFI# Headlight Pod RH (AU)(CU)
7171913
Not Available
7
Decal #EFI# Headlight Pod RH (AP)(AQ)
7172720
Not Available
7
Decal #EFI# Headlight Pod LH (AU)(CU)
7171912
Not Available
7
Decal #EFI# Headlight Pod LH (AP)(AQ)
7172719
Not Available
8
Decal Tank Side RH (AP)(AQ)
7172344
Not Available
8
Decal Tank RH (AU)(CU)
7171901
Not Available
8
Decal Tank LH (AU)(CU)
7171899
Not Available
8
Decal Tank Side LH (AP)(AQ)
7172343
Not Available
9
LOGO-POLARIS STAR
7078465
$23,09 Unit Price incl. VAT
10
Decal Front Cover #Polaris#
7079773
Not Available
10
Decal #POLARIS# Front Cover Gold [AB if built after 11/03/03)
7171879
Not Available
11
Decal Foot Brake
7079672
Not Available
12
Decal Warning Override AWD
7079604
Not Available
13
Decal Side Panel Upper RH (AU)(CU)
7171903
Not Available
13
Decal Side Panel #700# LH (AP)(AQ)
7171482
Not Available
13
Decal Side Panel #700# RH (AP)(AQ)
7171483
Not Available
13
Decal Side Panel Upper LH (AU)(CU)
7171902
Not Available
14
Decal Passenger Warning
7077920
Not Available
15
DECAL-TIRE PRESS/LOAD 5/5 1200
7079084
Not Available
16
Decal #POLARIS# Rear
7079959
Not Available
16
Decal #POLARIS# Rear Gold [AB if built after 11/03/03]
7172066
Not Available
17
Decal Discretionary Warning
7171383
Not Available
18
Decal Warning General CPSC
7079083
Not Available
19
Decal Reflector Amber RH
7171475
Not Available
19
Decal Reflector Amber LH
7171474
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
