1
Engine displacement
800
2
Year
2009
3
Trim
800 ASSAULT RMK 146
4
Parts Catalog

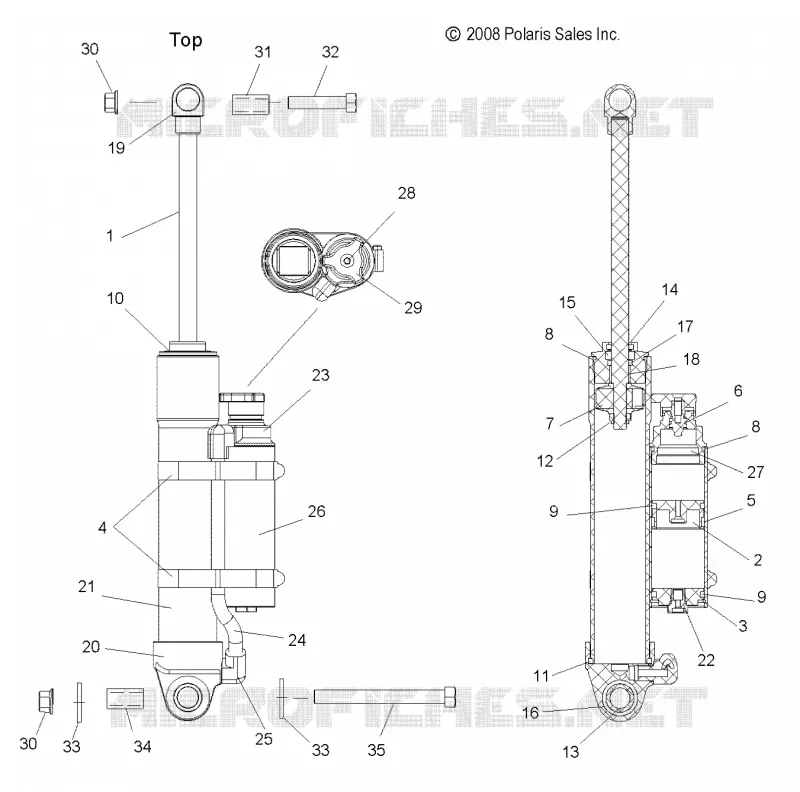

REAR TRACK SHOCK (7043403)
5
Parts Diagram
Parts Catalog
TOOL KIT AND OWNERS MANUAL
by
IFS SHOCK (7043404)
REAR TRACK SHOCK (7043403)
-
1
2
2
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
22
23
24
25
26
27
27
28
29
29
29
30
30
31
32
33
33
34
35
-
Shock Rear Track
7043403
Not Available
1
Shaft
1800296
$272,99 Unit Price incl. VAT
2
Screw Bleed
1800211
$3,98 Unit Price incl. VAT
2
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
2
ASM PISTON RES
1800281
$299,24 Unit Price incl. VAT
3
SNAP RING
1800019
$13,64 Unit Price incl. VAT
4
Clamp Hose
1800022
$23,09 Unit Price incl. VAT
5
Band Wear
1800026
1800297
$62,99 Unit Price incl. VAT
6
O-RING 2-010
1800094
$1,56 Unit Price incl. VAT
7
Piston w/Band
1800312
$152,76 Unit Price incl. VAT
8
O-RING 2-125
1800027
$3,66 Unit Price incl. VAT
9
O-RING
1800028
$3,14 Unit Price incl. VAT
10
Seal Head
1800293
Not Available
11
O-RING BODY LOOP
1800030
$3,66 Unit Price incl. VAT
12
NUT CRIMP
1800031
$7,34 Unit Price incl. VAT
13
SLEEVE 1.202L
1800032
$31,49 Unit Price incl. VAT
14
SEAL WIPER
1800295
$26,24 Unit Price incl. VAT
15
SEAL U-CUP
1800294
$47,24 Unit Price incl. VAT
16
BUSHING URETHANE
1800036
1801129
$34,64 Unit Price incl. VAT
17
O-RING
1800095
$2,09 Unit Price incl. VAT
18
BUSHING SHAFT
1800292
$20,99 Unit Price incl. VAT
19
LOOP SHAFT
1800096
$194,24 Unit Price incl. VAT
20
Loop Body w/Hole
1800343
Not Available
21
Body
1800344
Not Available
22
SCREW BUTTON HEAD
1800109
$6,29 Unit Price incl. VAT
22
Cap End
1800106
Not Available
22
O-Ring
1800108
$2,09 Unit Price incl. VAT
22
Valve Needle
1800107
Not Available
23
Housing Adjust
1800220
$236,24 Unit Price incl. VAT
24
Hose
1800212
Not Available
25
Elbow 90 Degree
1800113
$52,49 Unit Price incl. VAT
26
Reservoir Body
1800213
$119,16 Unit Price incl. VAT
27
PISTON CLICKER
1800217
$104,99 Unit Price incl. VAT
27
BOLT CLICKER
1800219
$20,99 Unit Price incl. VAT
28
Screw
1800203
$4,19 Unit Price incl. VAT
29
SPRING-D-TENT
1800128
$20,99 Unit Price incl. VAT
29
Knob
1800284
Not Available
29
BALL D-TENT
1800127
$12,59 Unit Price incl. VAT
30
Nut Flanged Lock
7547263
$6,29 Unit Price incl. VAT
31
Bushing .385 ID
5010422
$18,89 Unit Price incl. VAT
32
BOLT(10) Substituted by 7515492
7512410
7515540
$9,44 Unit Price incl. VAT
33
WASHER WAVE SPRING(10)
7555795
$2,09 Unit Price incl. VAT
34
SLEEVE .385X.560X1.24
5333905
$27,29 Unit Price incl. VAT
35
SCR-3/8-24X4.00 HXCP-GR5-Y
7518263
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
