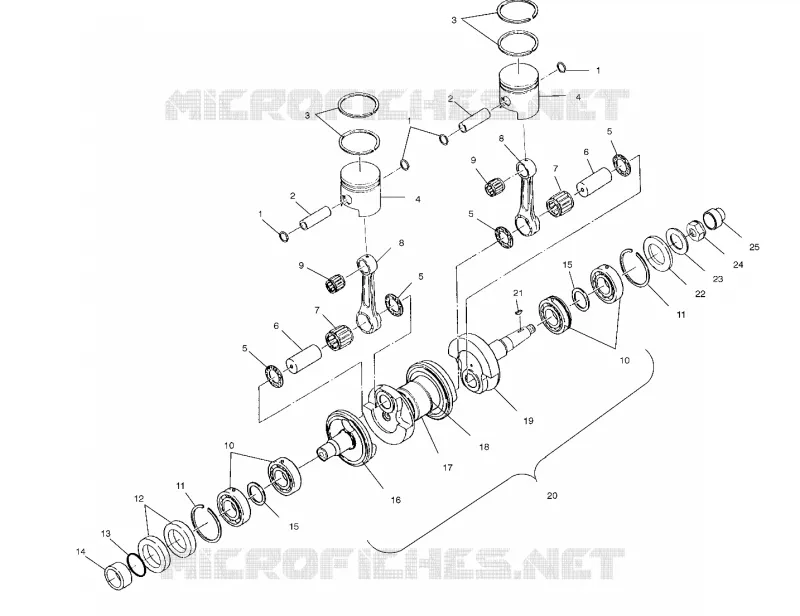

CRANKSHAFT AND PISTON FOR VIRAGE - W015197D FROM 2001

CRANKSHAFT AND PISTON

1

CIRCLIP PISTON 20MM. (10)

3022950

Not Available

2

PIN PSTN 20/12X60 NITRIDED

3021091

Not Available

3

KIT PISTONRING 81MM.25 O/S CKS

2200917

Not Available

3

KIT PISTONRINGS .50 O/S PWC

2200904

$73,07 Unit Price incl. VAT

3

KIT PISTONRINGS .25 O/S PWC

2200903

$79,47 Unit Price incl. VAT

3

KIT PISTONRINGS STD PWC (2 Rings)

2200902

Not Available

3

KIT PISTONRING 81MM STD CKS

2200918

Not Available

3

KIT PISTONRING 81MM.50 O/S CKS

2200916

$112,86 Unit Price incl. VAT

4

PSTN KIT 81MM .50 NTRD PIN (.50 mm OS)(Incl.1 2 3)

2201628

$290,84 Unit Price incl. VAT

4

PSTN 81MM PWC .25 NTRD PIN (.25 mm OS)(Incl.1 2 3)

2201627

Not Available

4

PSTN KIT 81MM STD NTRD PIN (Std.)(Incl.1 2 3)

2201626

Not Available

5

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

6

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

7

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

8

KIT CONN.ROD MAPE

2201022

Not Available

9

BEARING CONNECT.ROD

3584001

Not Available

10

BEARING BALL [PTO END]

3585503

$54,59 Unit Price incl. VAT

11

RING RETAINING (10)

7710441

Not Available

12

SEAL-FLANGE 35X72X7 SS SPRG

5411937

$41,99 Unit Price incl. VAT

13

O-RING

5410613

$3,66 Unit Price incl. VAT

14

COLLAR CRANKSHAFT

5131195

Not Available

15

BUSHING(10)

7555905

$6,29 Unit Price incl. VAT

16

CRANKWEB PTO BIGBORE

5131083

$198,96 Unit Price incl. VAT

17

CRANKWEB CTR BIGBORE

5131084

$198,96 Unit Price incl. VAT

18

LABYRINTH

5131086

Not Available

19

CRANKWEB MAG.

5131085

Not Available

20

KIT CRANKSHAFT 2CYL PWC MAPE (Incl. 10 16-20 22)

2201243

Not Available

21

KEY WOODRUFF

7721117

$47,24 Unit Price incl. VAT

22

SEAL (Magneto)

3610044

$41,99 Unit Price incl. VAT

23

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

24

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

25

COUPLER PUMP DRIVE

5432576

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
