1
Engine displacement
1000
2
Year
2023
3
Trim
SPORTSMAN XP 1000 55" 49S
4
Parts Catalog

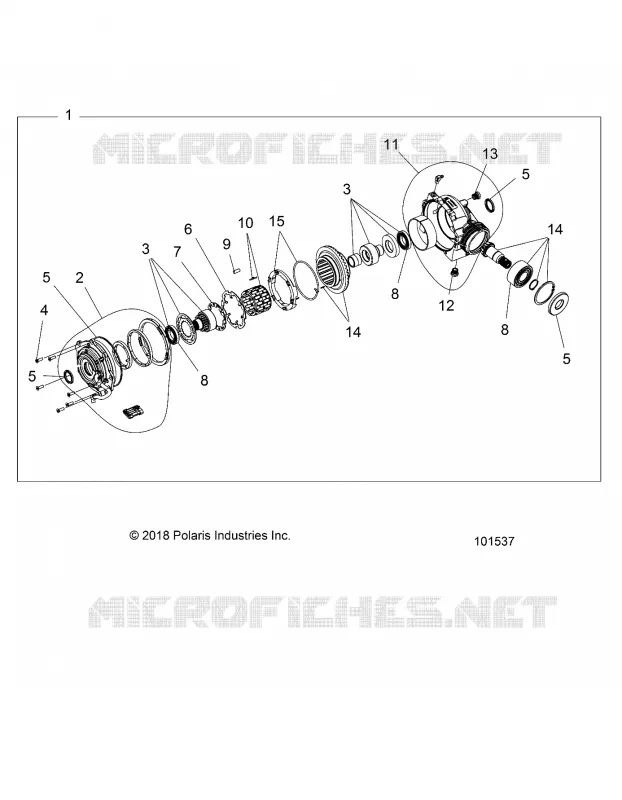

DRIVE TRAIN, FRONT GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, DRIVE SYSTEM VENTING
by
DRIVE TRAIN, GEAR SELECTOR
DRIVE TRAIN, FRONT GEARCASE INTERNALS
1
2
3
3
4
5
5
5
5
6
7
8
8
8
9
10
11
12
13
14
14
15
1
ASM-FRONT DRIVE ADC [INCL. ALL]
1337011
$3 008,24 Unit Price incl. VAT
2
ASM. COVER OUTPUT [INCL. O-RING SEAL PIN COVER SPACER COIL CLIPS 4WD COIL WIRING]
3236668
$955,49 Unit Price incl. VAT
3
KIT OUTPUT HUB ASSY - MALE AND FEMALE [INCL. BEARING BUSHING HUB HUB PLATE SPACER HUB ASM.]
3236676
$955,49 Unit Price incl. VAT
4
COVER FASTENERS W/ALL FASTENERS
3235170
$34,64 Unit Price incl. VAT
5
K-SEAL REPAIR W/ALL SEALS
3236682
$167,99 Unit Price incl. VAT
6
PLATE 4WD ARMATURE
3235485
3236048
$209,99 Unit Price incl. VAT
7
ARMATURE PLATE BACK DRIVE
3235626
$188,99 Unit Price incl. VAT
8
BEARING-PINION 5306 W/ALL BEARINGS
3235174
$135,44 Unit Price incl. VAT
9
K-CLUTCH ROLLS W/COMPLETE SET OF ROLLER
3235624
$12,59 Unit Price incl. VAT
10
ASM. ROLL CAGE [INCL. CAGE 24 CLIPS]
3236417
$645,74 Unit Price incl. VAT
11
K-GEARCASE ASM W/HOSE FITTING BUSHING SEAL GEARCASE FILL PLUG & DRAIN PLUG
3236684
$1 044,74 Unit Price incl. VAT
12
KIT-PLUG DRAIN
2203738
$68,24 Unit Price incl. VAT
13
KIT-PLUG FILL
2203739
$83,99 Unit Price incl. VAT
14
KIT-GEAR HOUSING & PINION GEAR ASSSY W/RING GEAR ASSY PINION BEARING INTERNAL RING & SHAFT RING
3239381
$1 186,49 Unit Price incl. VAT
15
KIT-TORSION SPRING AND RETAINER [INCLUDES 22 & 26]
3235712
$68,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
