1
Engine displacement
1000
2
Year
2016
3
Trim
SCRAMBLER 1000 TRACTOR
4
Parts Catalog
ENGINE, OIL SYSTEM
5

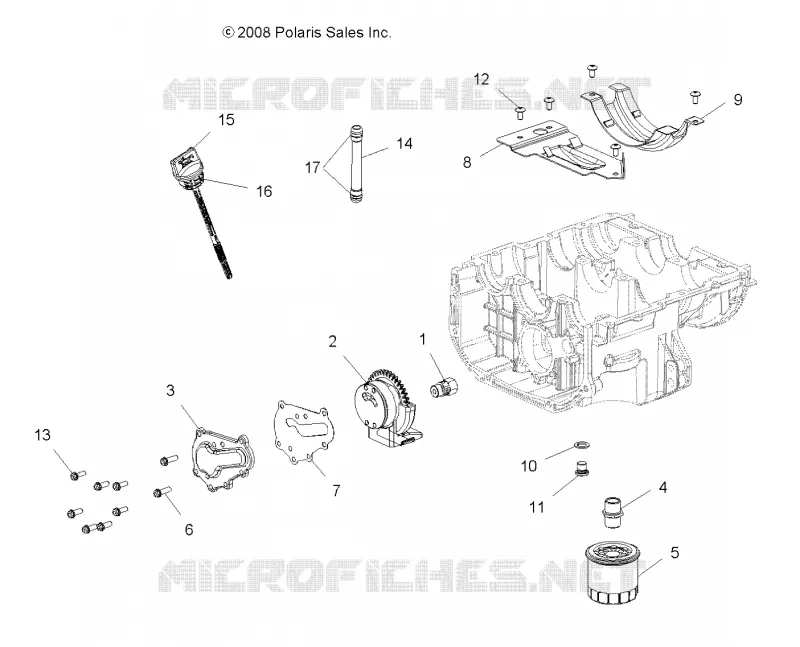

Parts Diagram
Parts Catalog
EXHAUST
by
STEERING, HANDLEBAR CONTROLS
ENGINE, OIL SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
1
Asm. Regulator Valve 85 PSI
2520672
$89,24 Unit Price incl. VAT
2
ASM. PUMP OIL
2521041
$283,49 Unit Price incl. VAT
3
CAP OIL PUMP
2520560
$62,99 Unit Price incl. VAT
4
ADAPTOR-FILTER STRAIGHT
2521530
$68,24 Unit Price incl. VAT
5
FILTER-OIL 10 MICRON
2520799
$19,20 Unit Price incl. VAT
6
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
7
SEAL OIL PUMP CAP
3610128
$12,59 Unit Price incl. VAT
8
PLATE WINDAGE PTO
5257984
$104,99 Unit Price incl. VAT
9
PLATE WINDAGE MAG
5250397
$68,24 Unit Price incl. VAT
10
WASHER-19X12X1.3 COPPER
5812232
$3,14 Unit Price incl. VAT
11
PLUG-SOCKET M12X1.5 DIN 908A
7052306
$31,49 Unit Price incl. VAT
12
SCREW-SH-M6X1.0X12 10.9 ZPB D204
7517739
$17,84 Unit Price incl. VAT
13
SCR-HXFL M6X1.0X16 8.8ZY3DL204
7519329
$7,34 Unit Price incl. VAT
14
TUBE OIL TRANSFER [INCL. 17]
2520561
$52,49 Unit Price incl. VAT
15
DIPSTICK OIL FILL [INCL. 5412530]
2521028
$68,24 Unit Price incl. VAT
16
O-RING-26.65X2.62 0600083
5412530
$3,14 Unit Price incl. VAT
17
O-RING .364X.504X.07 0600083
5413007
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
